High Lumens Solar Lighting System All In One Integrated Solar LED Street Light

चीन High Lumens Solar Lighting System All In One Integrated Solar LED Street Light आपूर्तिकर्ता
High Lumens Solar Lighting System All In One Integrated Solar LED Street Light आपूर्तिकर्ता High Lumens Solar Lighting System All In One Integrated Solar LED Street Light आपूर्तिकर्ता

बड़ी छवि :  High Lumens Solar Lighting System All In One Integrated Solar LED Street Light

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: NorthTime
प्रमाणन: CE, ROHS, IP65, ISO9001, ISO14001
Model Number: IN-250C

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 Set
मूल्य: Negotiable
Packaging Details: 1Set/Carton, 20'GP container:250 sets
Delivery Time: 10-15 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 7000 Set /Month
Contact Now
विस्तृत उत्पाद विवरण
Solar Panel: 18V 70W Efficiency Monocrystalline silicon (German Solarworld) Material: Aluminum Alloy
LED Chips: High brightness Bridgelux LED Lumens: 5100-5200 Lumens
Battery: Lithium Battery 12V 35AH Install Height: 7-8 meters
Discharge Time: 4 Rainy days Charge Time: 6-7 hours with strong sunshine
Sensor: Motion Sensor & Light Sensor Working Temperature: -30℃~+60℃
IP Rating: IP65 Product size: 1200*325*45mm

High Lumens Solar Lighting System All In One Integrated Solar LED Street Light

1. Product Description:

The Integrated Solar LED Street Light with motion sensor is an intelligent outdoor lighting system that provides powerful lighting into an all-in-one compact package and is easy to installing. During the day, the highly efficient solar panel collects energy from the sun and stores the power in the lithium battery. At night, the powerful LED's automatically turn on and providing bright light for whole night. If nobody go through the light, the light will keep half power working, or lower. And turn into full power working when the motion sensor is detected by human moving.

2. 50W LED Solar Street Light Parameters:


All in one Solar Street Light 50 WattsItem No.: IN-250C
Solar panel type/powerMaximum power18V 70W Germany Solarworld Mono Solar Panel
Lifespan≥25 years
Battery/ Voltage/ CapacityBattery typeLithium battery 12V 35AH
Lifespan5 years
LED light ( with PIR sensor )Maximum power12V 65W
LED chip brandUSA Bridgelux
Luminous flux5100-5200 Lumens
Lifespan50000 hours
Beam angle120°
Charging timePure solar energy6-7 hours by strong sunlight
Discharging timeFull power> 15 hours
Half power> 30 hours
Working temperatureUnit(ºC)-30ºC ~ +60ºC
Color temperatureUnit(k)6500-7000K
Pole heightUnit(m)7-8 m
Interval recommendedUnit(m)20m
Lamp materialAluminum alloy
StandardCE / ROHS / IP65/ ISO9001 / ISO14001
Warranty3 years
Packing informationLight size1200*325*45 mm
Net weight18kgs
Packing boxNeutral packing/OEM packing
Carton size1320*400*220mm
Carton1 set/ CTN
Gross weight20kgs
Container loading instruction20' GP250sets
40' GP530pcs


High Lumens Solar Lighting System All In One Integrated Solar LED Street Light

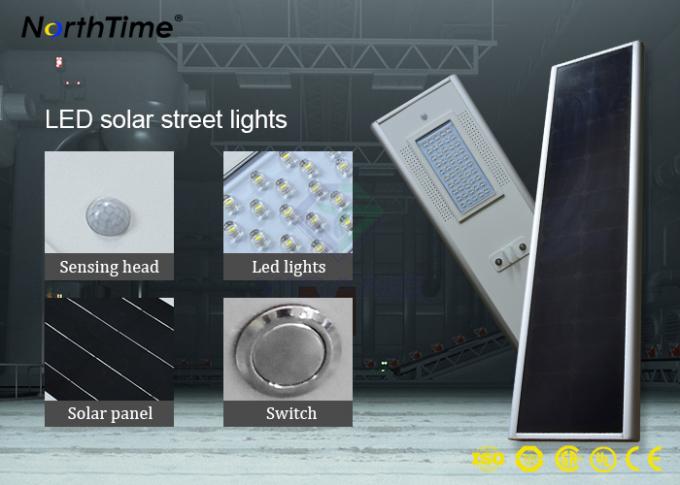

3. Solar LED Street Light Features:

Solar Panel
We use Germany Solarword efficiency mono crystalline silicon solar panel & United States brand Sunpower efficiency mono crystalline silicon solar panel. The photoelectric conversion efficiency can reach 20% and 22%. Lifespan of the solar panel is 25 years.

Controller


The controller is developed by our engineering team. We also have applied the patent successfully already. The conversion efficiency of our controller is 95%, while the average efficiency of other controllers are only 60% -70% for the whole market. Lifespan of our controller is 10 years.
Lithium Battery
We use the lithium iron phosphate battery (LiFePO4) which is environmentally friendly. It is inside the product to avoid being stolen. Its lifespan is more than 5 years.
LED Chips
United States brand Bridgelux 45ML is used for our solar street light, and the lumen of each led chip is 150LM. Its lifespan more than 10 years.



4. Solar LED Street Light Control Functions:


Light control, motion sensor control, time control, mobile phone APP control.

1) Light control: when it is dark, the lights will automatically turn on; When it is dawn, the lights will automatically turn off.
2) Motion sensor: when people pass through, the sensor will be triggered and the light will turn on in 100% brightness and last 20-30 seconds. When people leave, the brightness of light become weak.

3) Time control: lighting time and light off time program can be set per your request. The brightness also can be customized according to your requirements.

4) Mobile phone APP control : Install our APP software in your mobile phone, then you can connect to the lights through bluetooth module and control the lights by your mobile phone APP. The functions as below:

a). The lamp can be forced to turn on or off.
b). Manually set the rainy days, and adjust the brightness of the lamp.
c). If the settings are not correct, you can restore the factory settings as original.
d). In case of lights can not work, you can read data on the phone to check which parts need maintenance.
e). Control the lighting mode at different time, control lighting time and light off time.
f). Data can be synchronized with local time, will record real-time for working, record the lamp installation time, the time of failure to facilitate future maintenance work.
Phone APP function help you to use lights convenient and good for after-sales maintenance.



5. Application:


The All-in-One Solar Street Light can be installed in many application, such as street, residential, industrial zone road, square and park, school, campus, farm, villas, gardens and soon. Easy installation, only two worker needed, cost less labor.

High Lumens Solar Lighting System All In One Integrated Solar LED Street Light


6. Our Service:

We can offer OEM and ODM service for all products. Our professional engineering team can provide different solutions according to different project requirement. Our OEM and ODM partners include Pubang, Hi-view, GSM and so on. Welcome to send your inquiry!



7. Shipping:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods.
